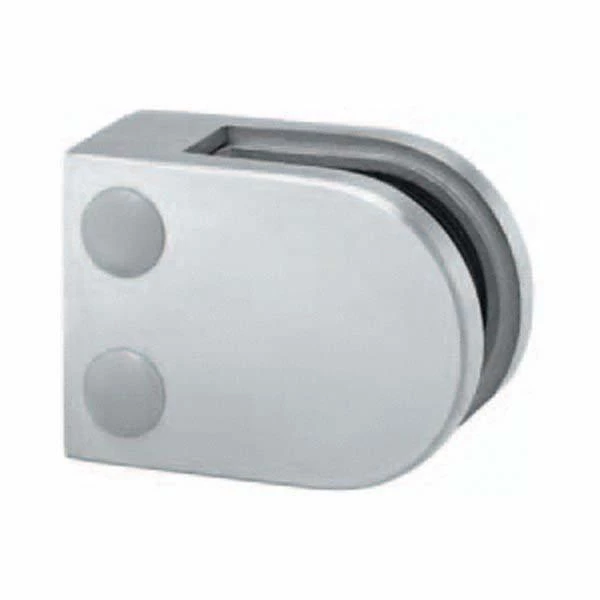

Pro Railing Stainless Steel Flat Backed Glass Clamp 316L 8-12mm

Glass balustrades provide a contemporary look to commercial and residential properties. Our Flat Backed Glass Clamps are a simple and effective way of securing glass to Newel Posts, Walls, Pillars, in fact almost any flat surface. They also available as a round back version (see listing). Being manufactured from 316L stainless steel they are of the highest standard and will always look their best.

Features

• Stainless 316L Marine Grade
• Flat back
• To suit 8-12mm glass
• Glass hole cut out not required
• Glass Clamps supplied with 10mm rubbers.

We recommend cleaning the rubbers used in the clamps before installing as they come from the manufacturer coated in the release agent from the mould, failing to do this could result in the glass slipping.

If fixing between posts please deduct 40mm from the total opening size to give the required glass width. (20mm per side)

NB: For 8mm glass please order 8mm rubbers – Code: 189900108
NB: For 12mm glass please order 12mm rubbers – Code: 189900112

Please note: If using glass clamps in any installation where the glass is fixed to the outside of a staircase and overhanging, then security pins189900401 and drilled glass must be used. Alternatively, use our square glass clamps which come with a bottom location plate.
