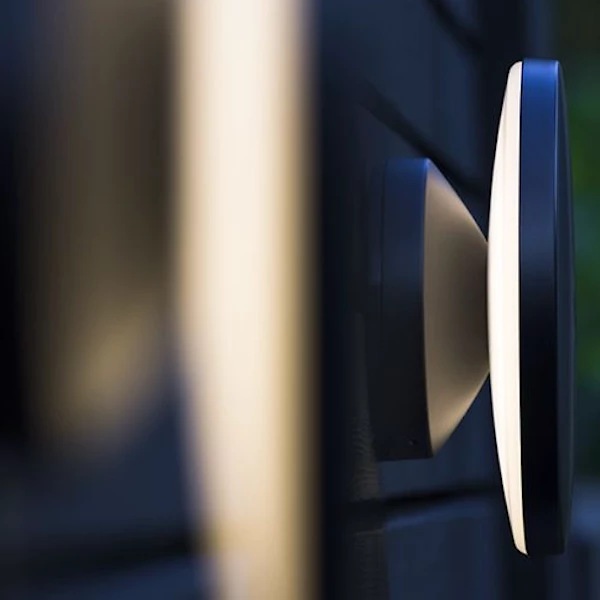

The DISC WALL (12V) is an attractive wall light. The fixture produces a diffuse lighting effect on all sides and can be connected to an in-lite 12V HUB transformer.
Order & Delivery expected: mid-June
- Produces a diffuse lighting effect on all sides
- Suitable for installation on a wall or fence
- Made of aluminum with an FCBV coating
![]()

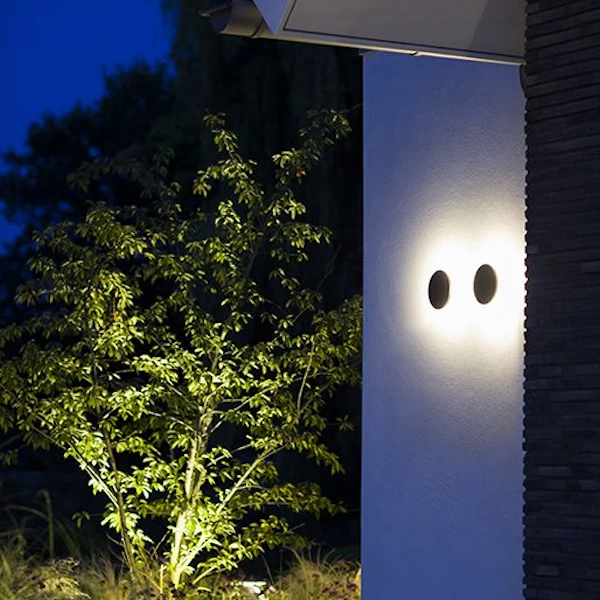

The DISC WALL (12V) is a wall light with a stylish and contemporary design. The DISC WALL (12V) illuminates walls with a diffuse lighting effect on all sides. This fixture can be connected to one of the in-lite HUB transformers.
This product is multi-component and the components are packaged separately.
General
| Height mm | 36 |
| Height inch | 1.42 |
| Diameter mm | 200 |
| Diameter Inch | 7.87 |
| Housing | Aluminium FCBV |
| Voltage | 12 volt |
| Power | 2,9W |
| Electric potential | 4,9VA |
| Light source | LED |
| Burning time | 25000 |
| Lighting direction | Ambient |
| Lighting reach m | 3 |
| Lighting reach ft | 9.84 |
| Color temperature | 2900 |
| CRI | 98 |
| Net Luminous Flux | 211lm |
| Luminous Efficacy | 70lm/W |
| IP-class | 55 |
| Energy label | A++ |
| Application | Fence, Overhang, Pergola |
| Installation instructions | The DISC WALL casts light directly on the wall and, to a lesser degree, sideways, which is why the sides of the fixture head are not completely covered/closed, but enough to direct the light towards the wall. Since the sides are partly covered, the light source is not visible. This ensures that there is no glare. The DISC WALL (12V) can be easily combined with other fixtures in the DISC concept, as well as the PUCK, HALO and other in-lite fixtures in Black or Dark Grey anodized aluminum. |
