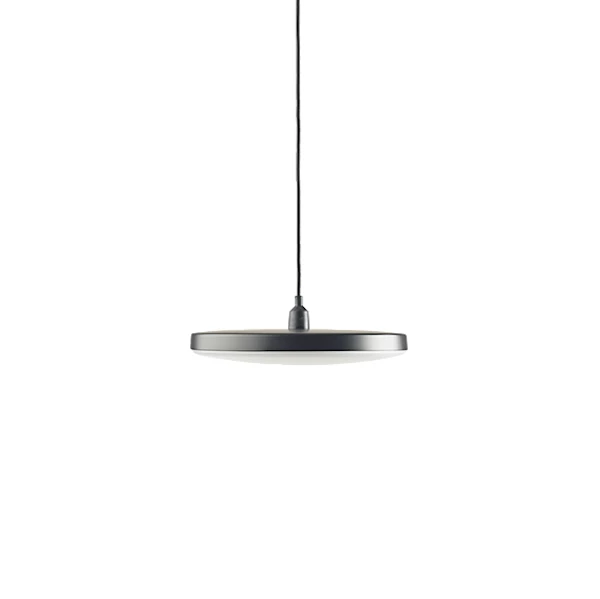

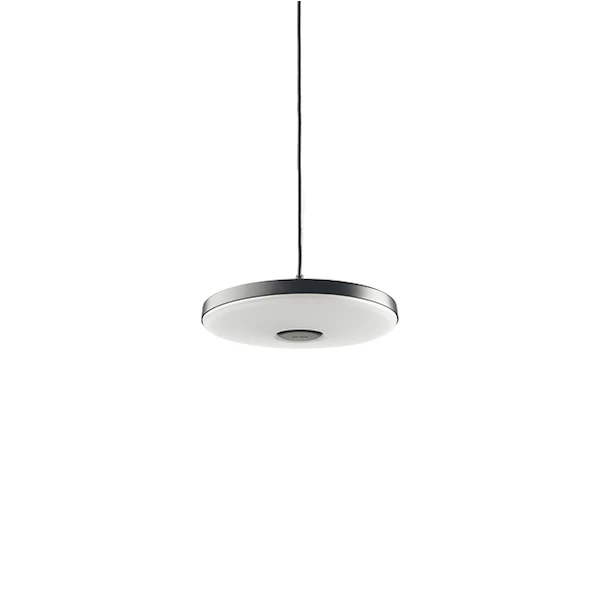

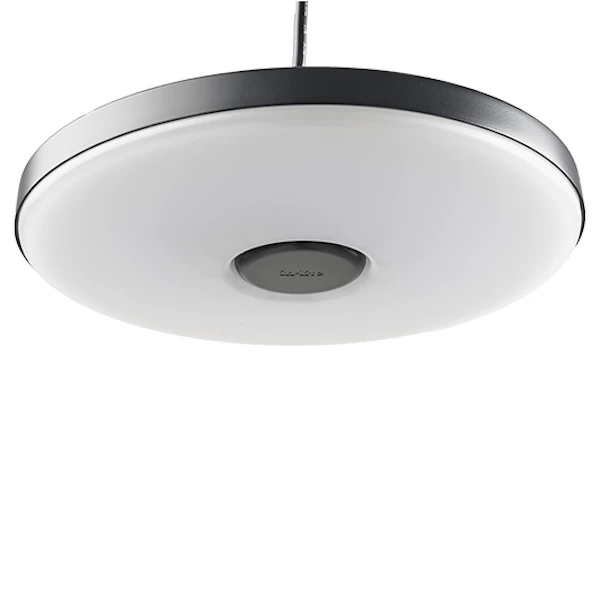

The DISC PENDANT 100-230V is an attractive hanging light that can be installed alone or in groups using the DISC BASE or DISC BASE TRIPLE.
- Dimmed by hand movements
- Made of aluminum with high-quality FCBV coating in the color Black

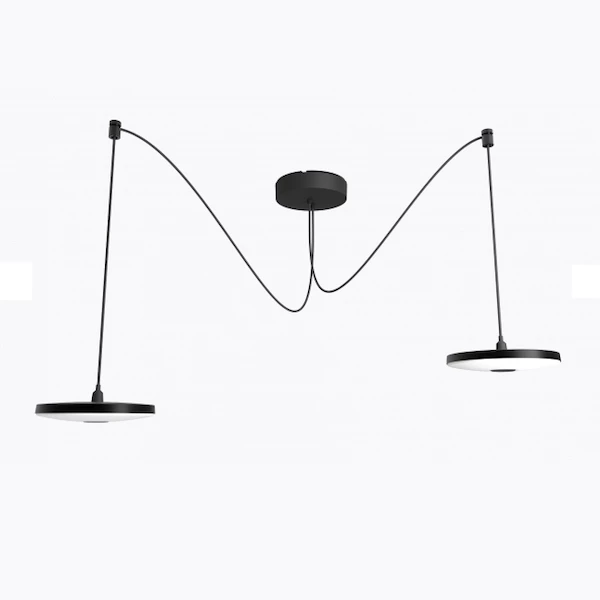

- Installed alone or in groups using the DISC BASE or DISC BASE TRIPLE
Â

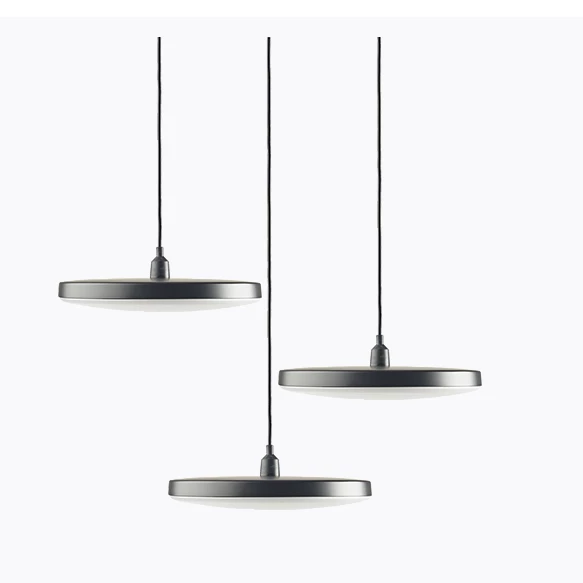

If multiple fixtures are to be installed using the DISC BASE TRIPLE, it is important to install the fixtures at different heights and with sufficient distance between them. Use the strain relief devices provided to ensure this.
The DISC PENDANT 100-230V should preferably be hung in a windless spot.
The DISC PENDANT 100-230V can be easily combined with other fixtures in the DISC concept, as well as the PUCK, HALO and other in-lite fixtures in Black or Dark Grey anodized aluminum.
Product Details
| Color | Black |
General
| Height mm | 36 |
| Height inch | 1.42 |
| Diameter mm | 200 |
| Diameter Inch | 7.87 |
| Housing | Aluminium FCBV |
| Voltage | 100-230 volt |
| Power | 4,5W |
| Electric potential | 11,8VA |
| Light source | LED |
| Burning time | 25000 |
| Lighting direction | Downwards |
| Lighting reach m | 3 |
| Lighting reach ft | 9.84 |
| Color temperature | 2900 |
| CRI | 98 |
| Net Luminous Flux | 216lm |
| Luminous Efficacy | 45lm/W |
| IP-class | 55 |
| Energy label | A |

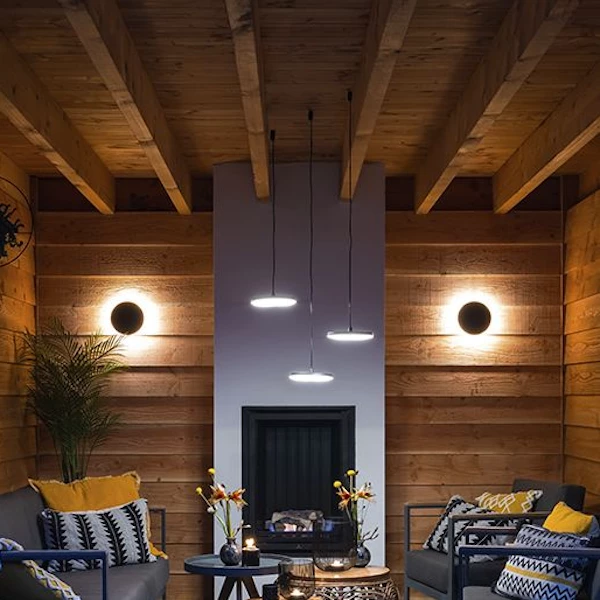

| Implementation | Overhang, Pergola |
| Features | Dimmable |
| Installation instructions | Install the DISC PENDANT 100-230V with the DISC BASE to an existing 230V power point in the ceiling. If multiple fixtures are to be installed using the DISC BASE TRIPLE, it is important to install the fixtures at different heights and with sufficient distance between them. Use the strain relief devices provided to ensure this. The DISC PENDANT 100-230V should preferably be hung in a windless spot. The DISC PENDANT 100-230V can be easily combined with other fixtures in the DISC concept, as well as the PUCK, HALO and other in-lite fixtures in Black or Dark Grey anodized aluminum. |
